Peloton Tread Install Instructions
![](http://shop.paradigmiot.com/cdn/shop/files/POWER_PELOTON.png?v=1670875473&width=1500)

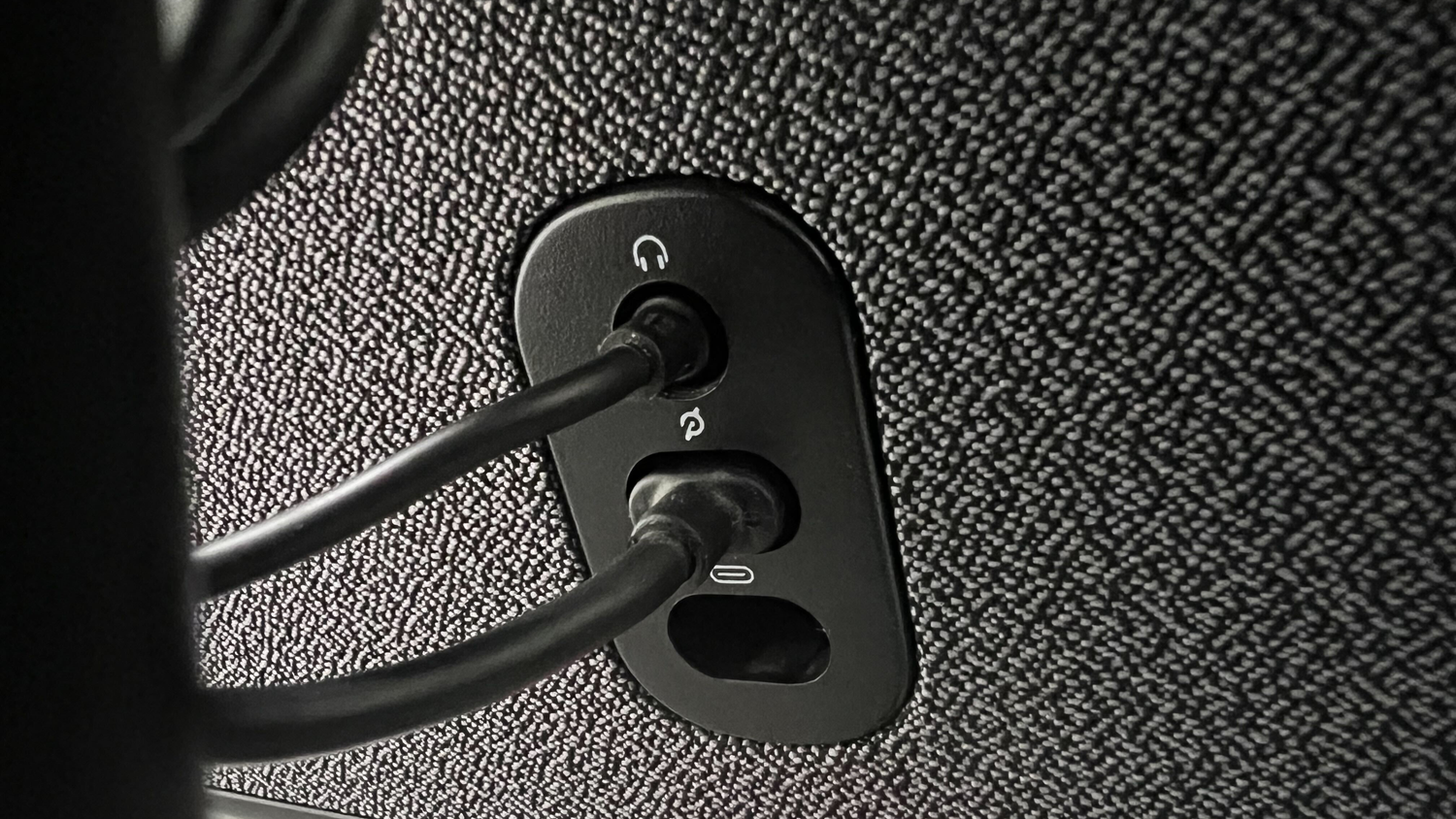

Connect the Peloton power cable into the provided power splitter cable. Connect the barrel power connector into the Peloton. Turn Peloton on.
![](http://shop.paradigmiot.com/cdn/shop/files/startScreen.png?v=1655915610&width=1500)

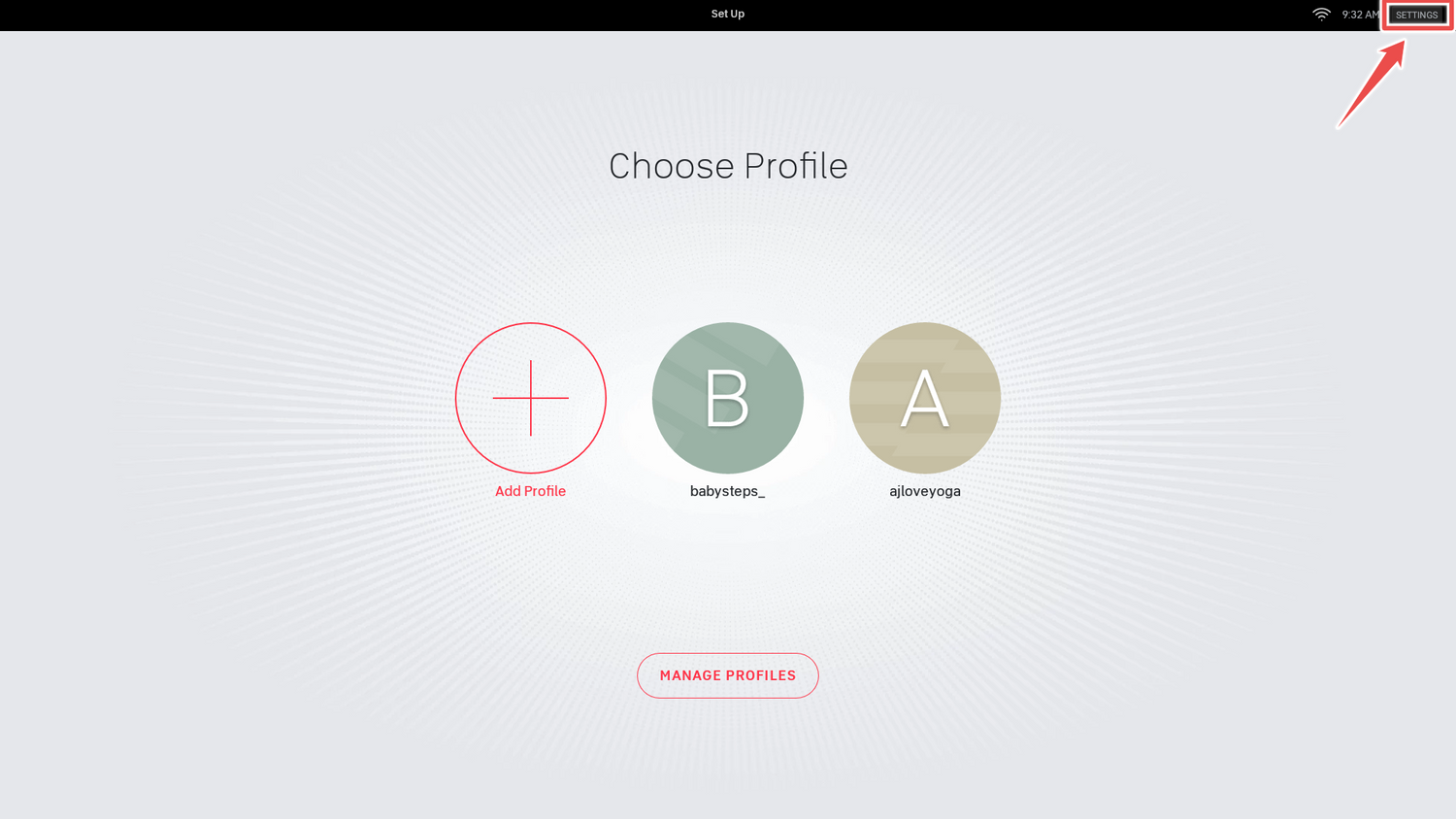

Tap 'settings' in top right corner.
![Select Device Settings](http://shop.paradigmiot.com/cdn/shop/files/goToDeviceSettings.png?v=1655912730&width=1500)

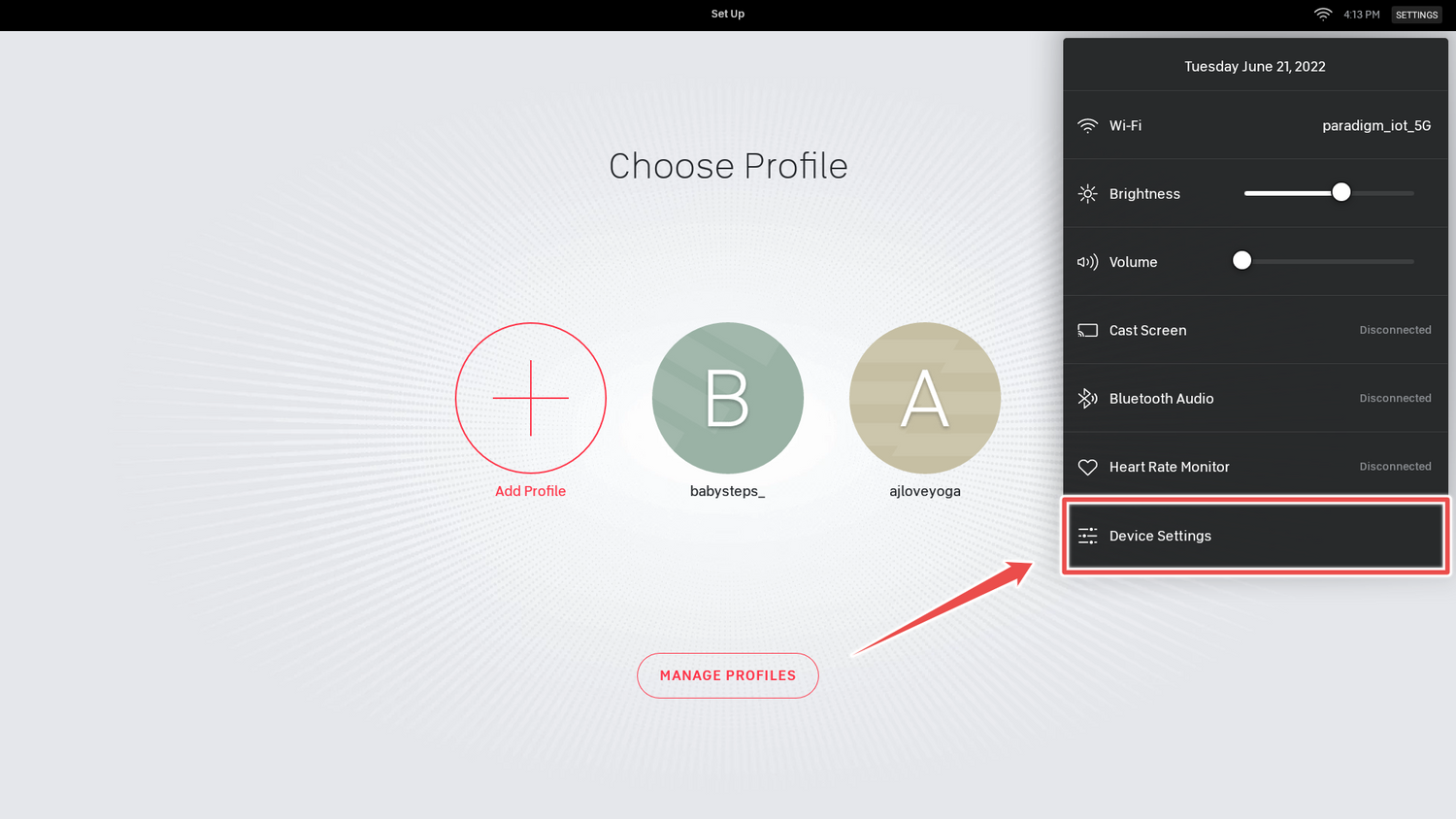

Tap on Device Settings.
![](http://shop.paradigmiot.com/cdn/shop/files/goToApps_3814c38a-7d16-450b-b6d7-a02d26d9dd1c.png?v=1655914282&width=1500)

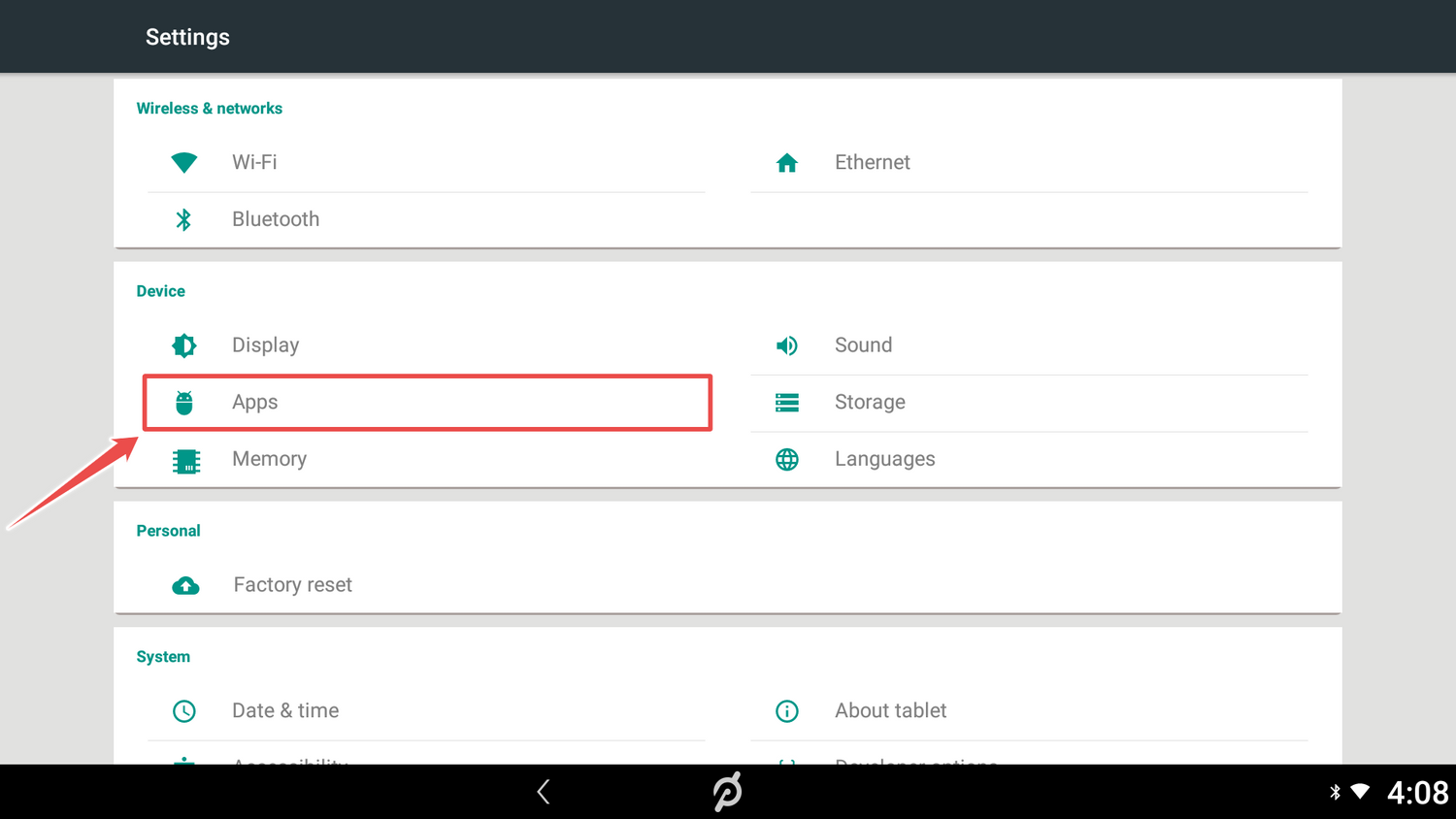

Tap on Apps.
![](http://shop.paradigmiot.com/cdn/shop/files/selectPelotonApp.png?v=1655914308&width=1500)

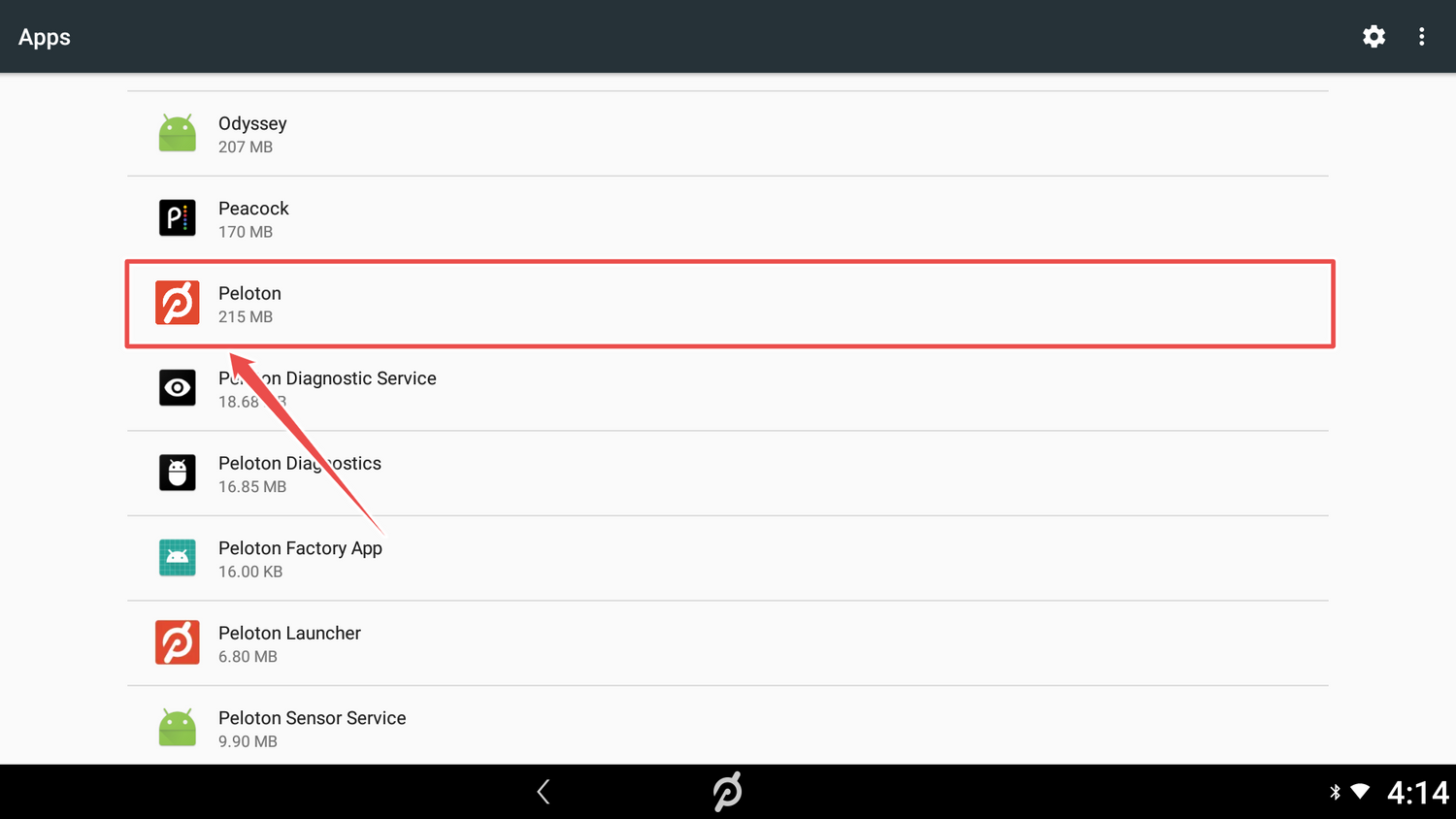

Find and tap on Peloton.
![](http://shop.paradigmiot.com/cdn/shop/files/forceStopPeloton.png?v=1655914330&width=1500)

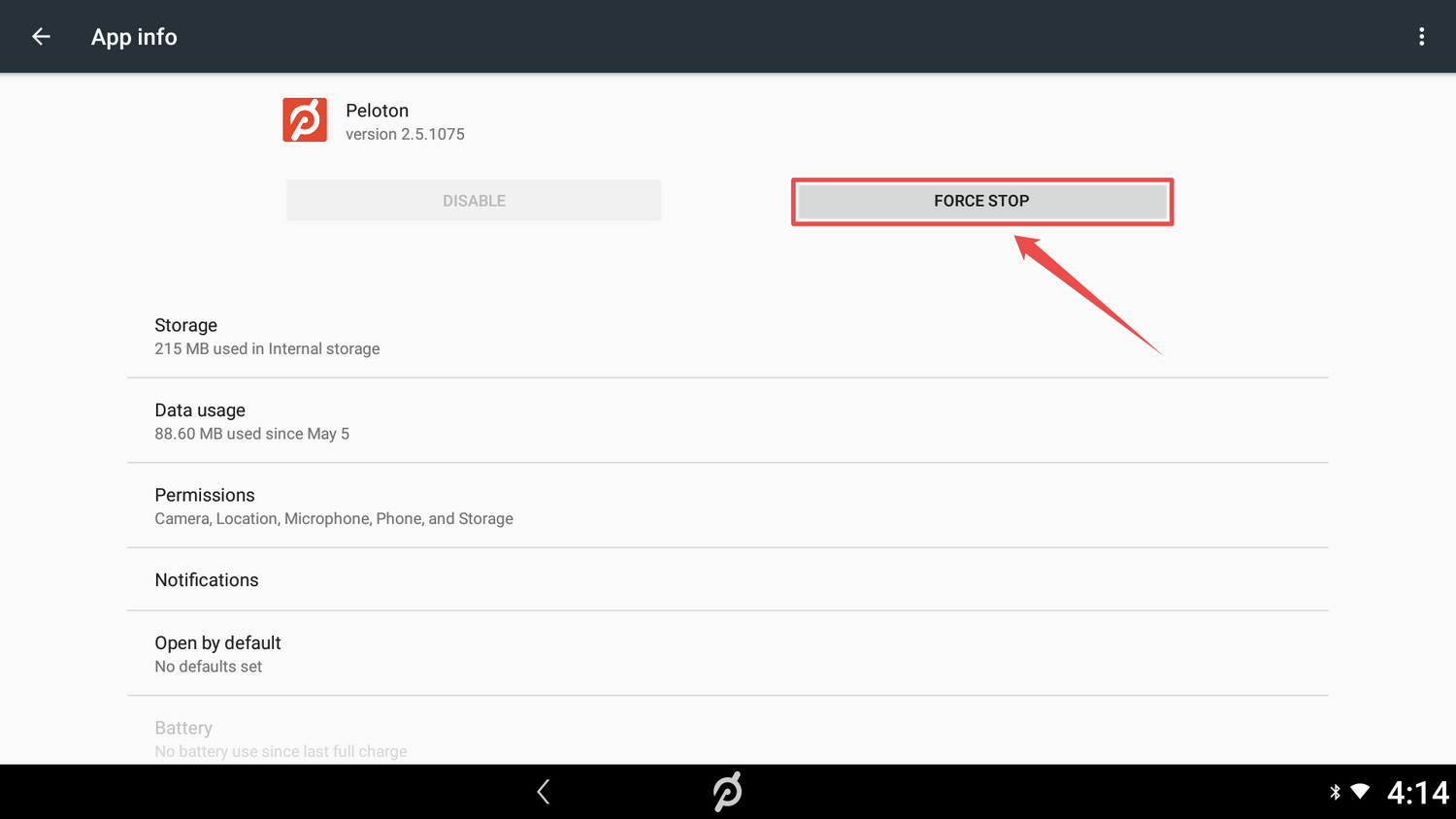

Tap on 'FORCE STOP.'
![](http://shop.paradigmiot.com/cdn/shop/files/annotely_image_1_19537046-3ba2-42cd-b52c-cf24fd6363dd.png?v=1657813426&width=1500)

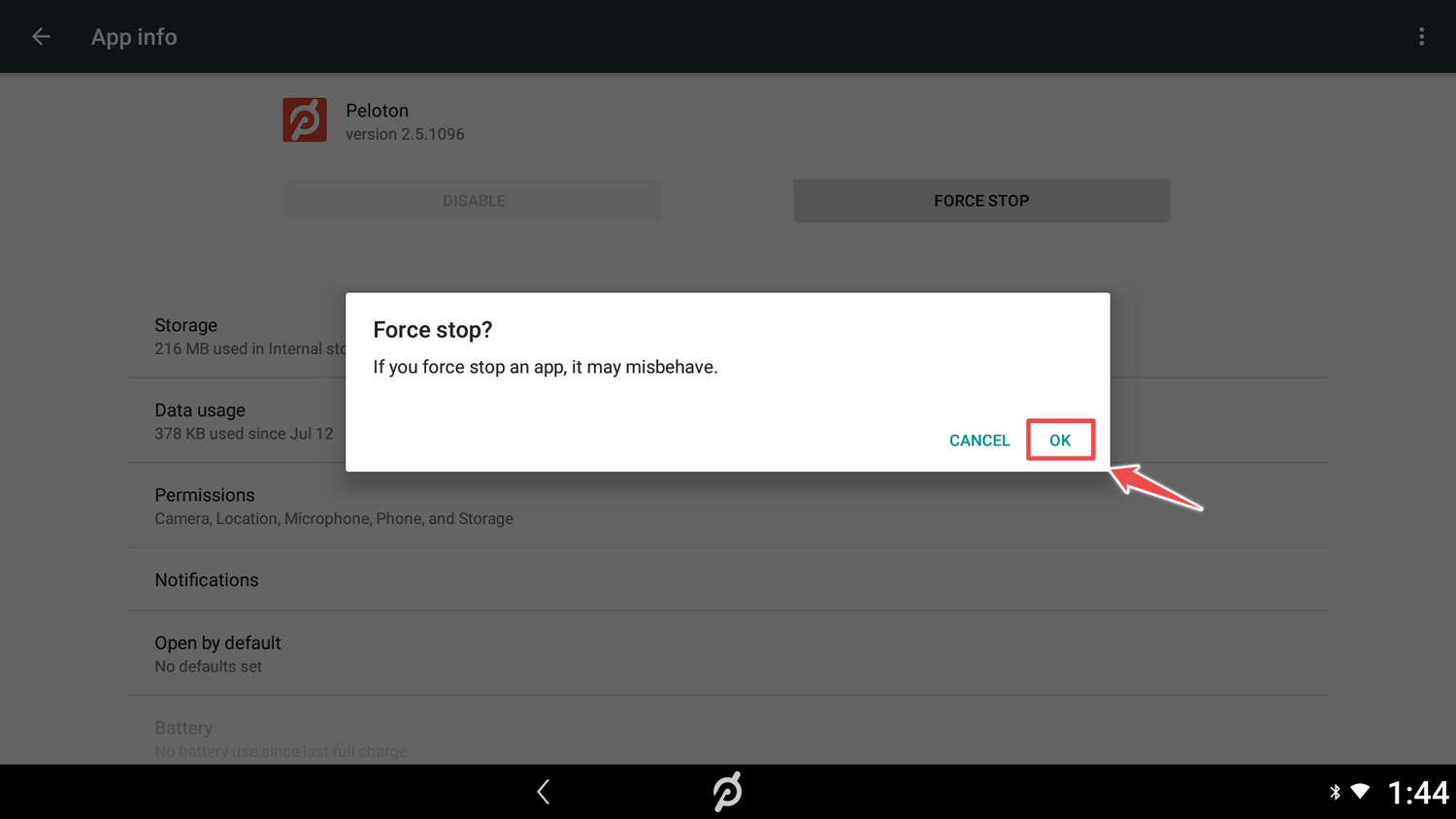

Tap on "ok."
![](http://shop.paradigmiot.com/cdn/shop/files/annotely_image_3.png?v=1656709077&width=1500)

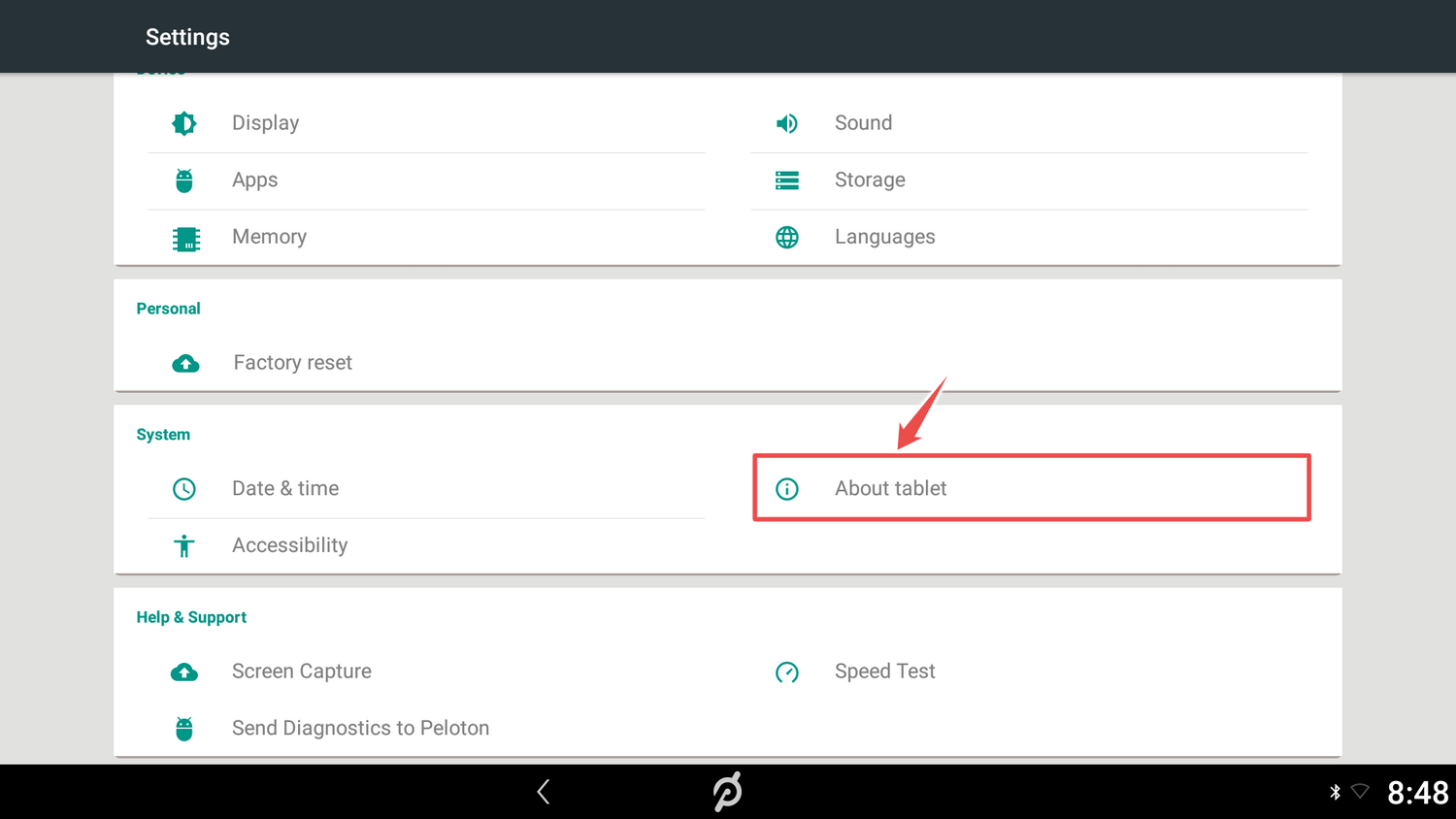

Return to settings by tapping on the arrow at the bottom of the screen and tap on "About tablet."
![](http://shop.paradigmiot.com/cdn/shop/files/annotely_image_1.png?v=1656709195&width=1500)

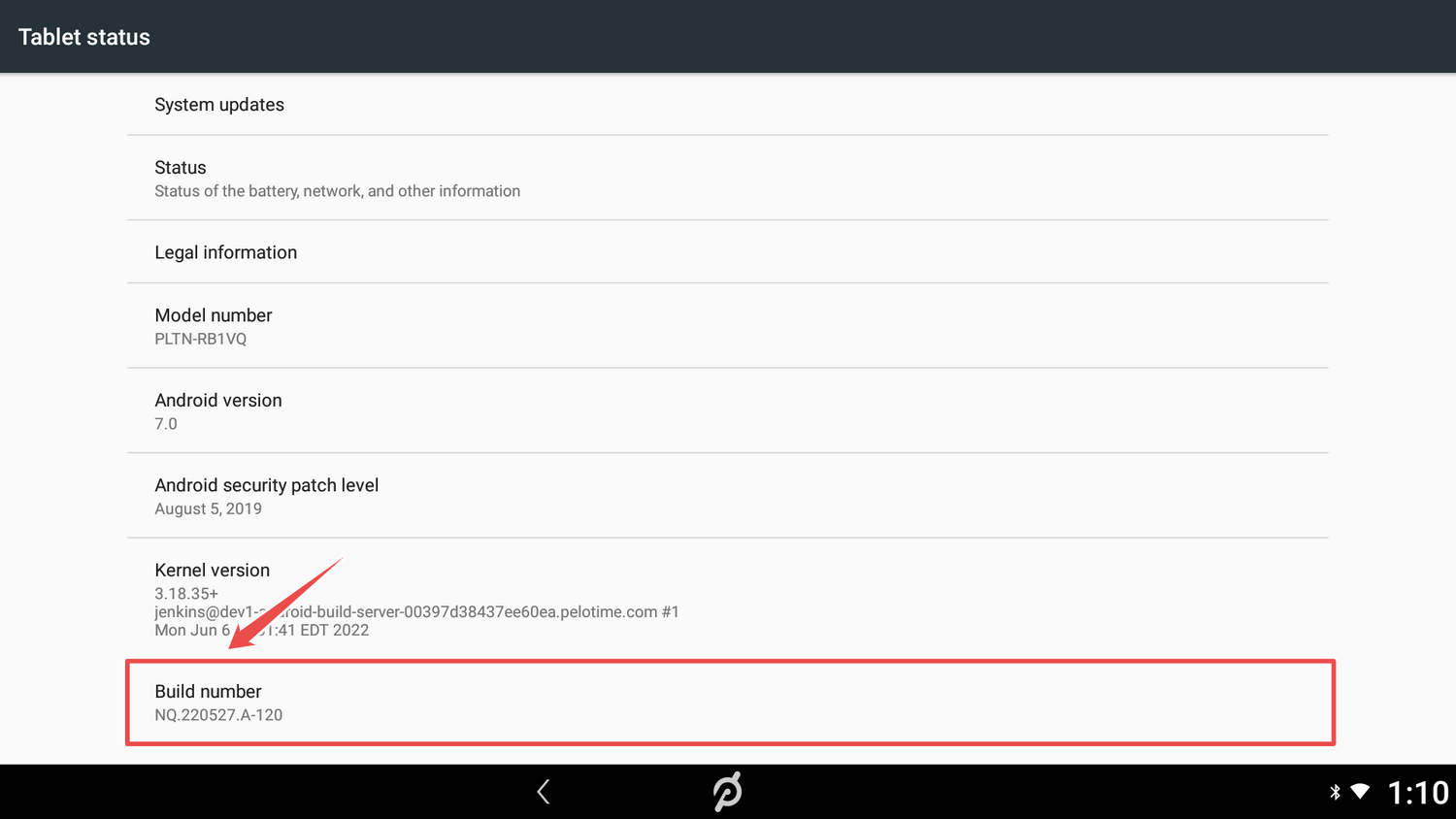

Tap on "Build number" box rapidly 7 times.
![](http://shop.paradigmiot.com/cdn/shop/files/goToDevOptions.png?v=1655914377&width=1500)

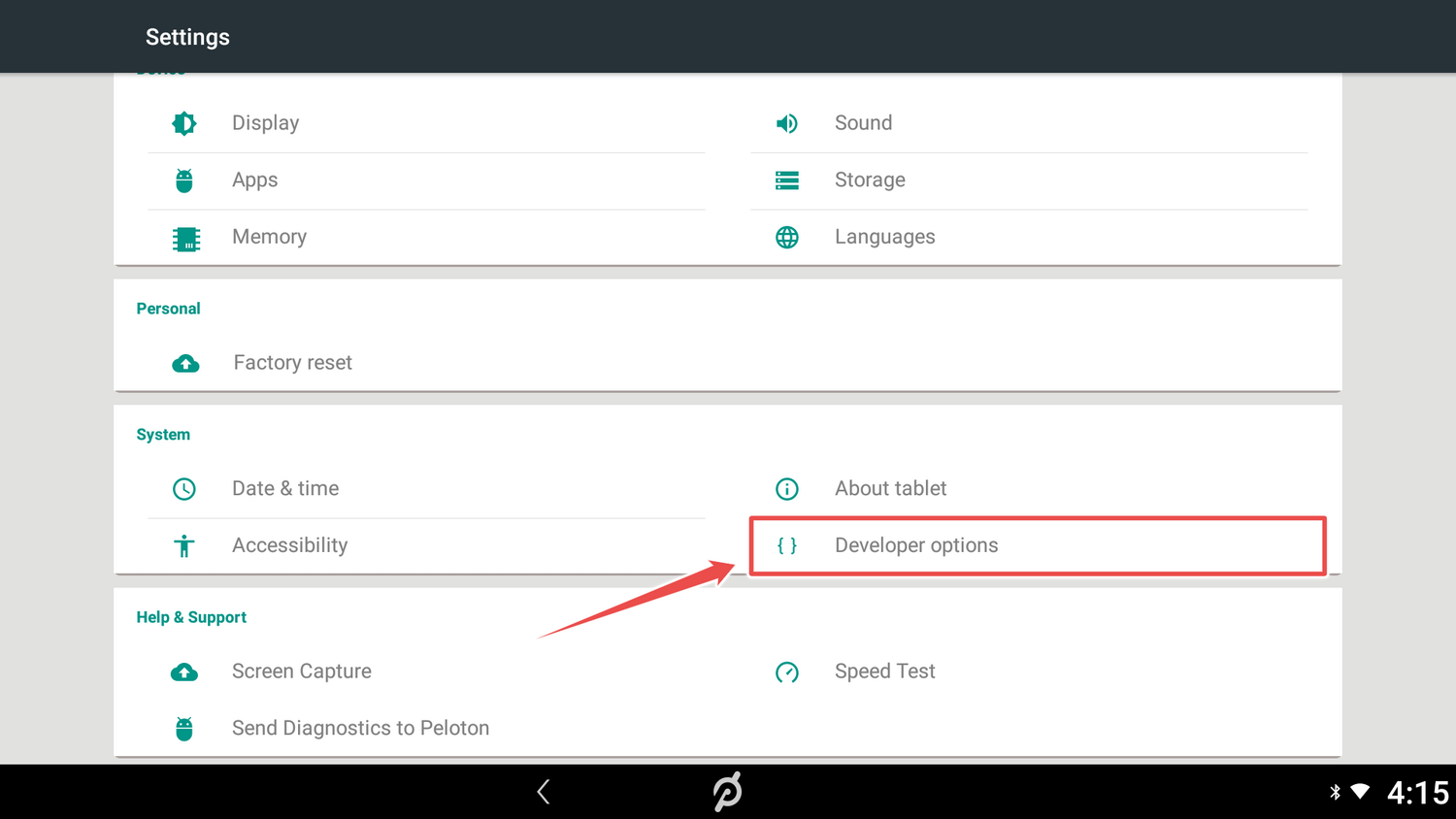

Return to settings by tapping on the arrow at the bottom of the screen and tap on "Developer options."
![](http://shop.paradigmiot.com/cdn/shop/files/USBDebuggingOn.png?v=1655914453&width=1500)

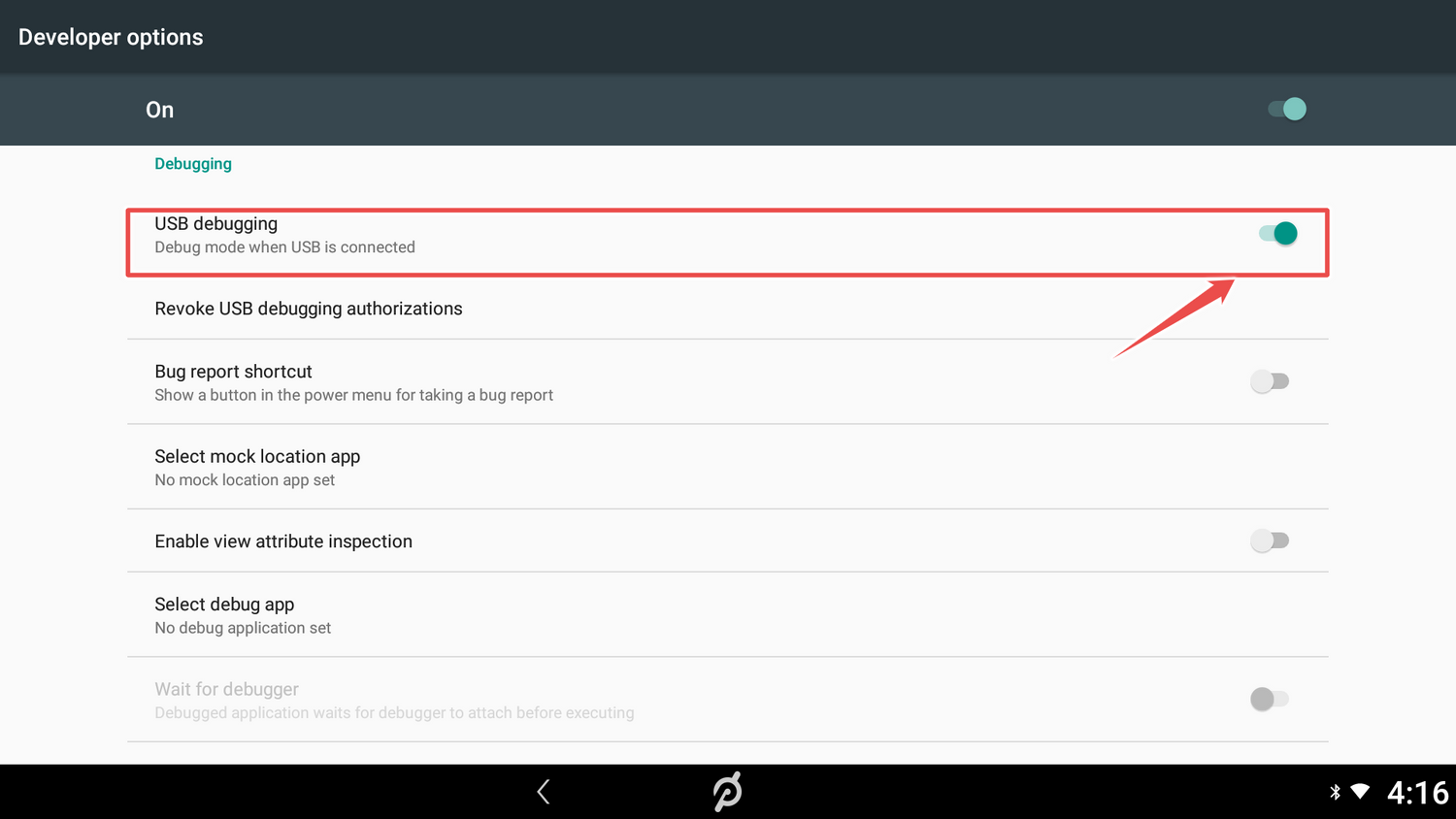

Scroll down to "USB debugging" and turn on.
![](http://shop.paradigmiot.com/cdn/shop/files/annotely_image_3_67a758a3-f033-480c-8ff3-ed60c36436a1.png?v=1657813621&width=1500)

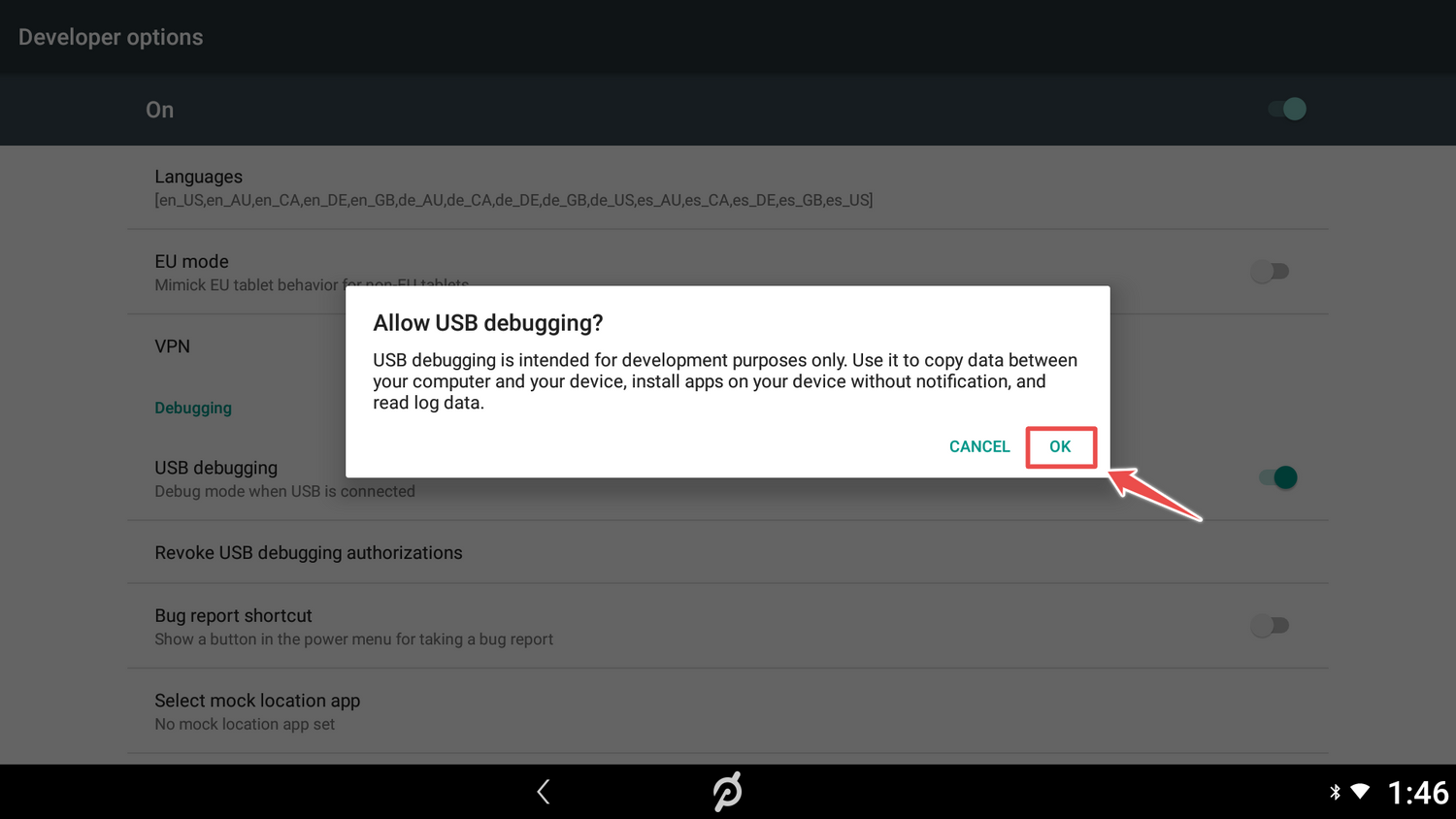

Tap on "ok."
![](http://shop.paradigmiot.com/cdn/shop/files/newPower_0d35bbc8-91d5-44ce-8006-046830dac552.png?v=1657058057&width=1500)

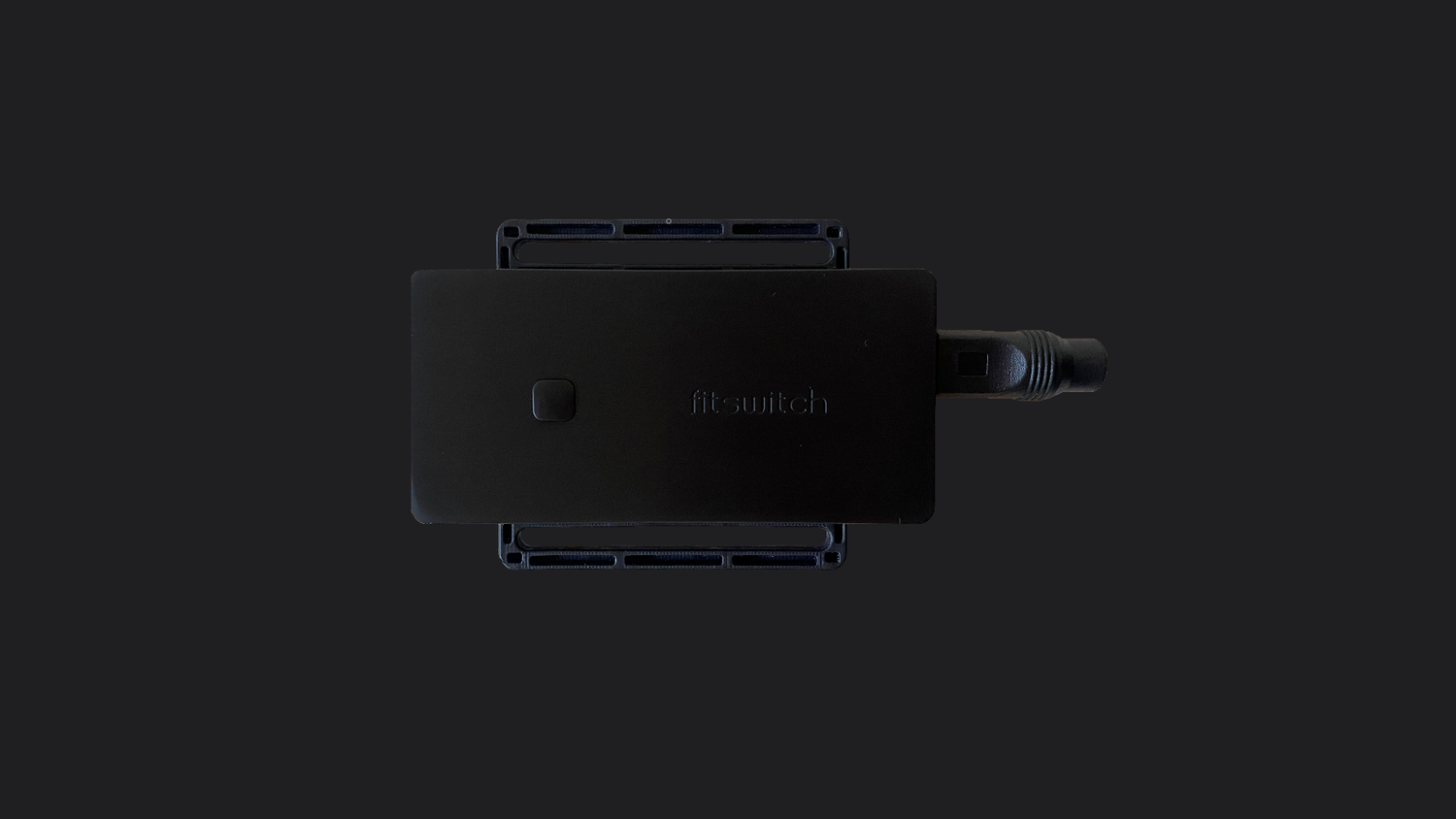

Connect power to fitswitch using the DC splitter Cable.
![](http://shop.paradigmiot.com/cdn/shop/files/newMicro.png?v=1656714805&width=1500)

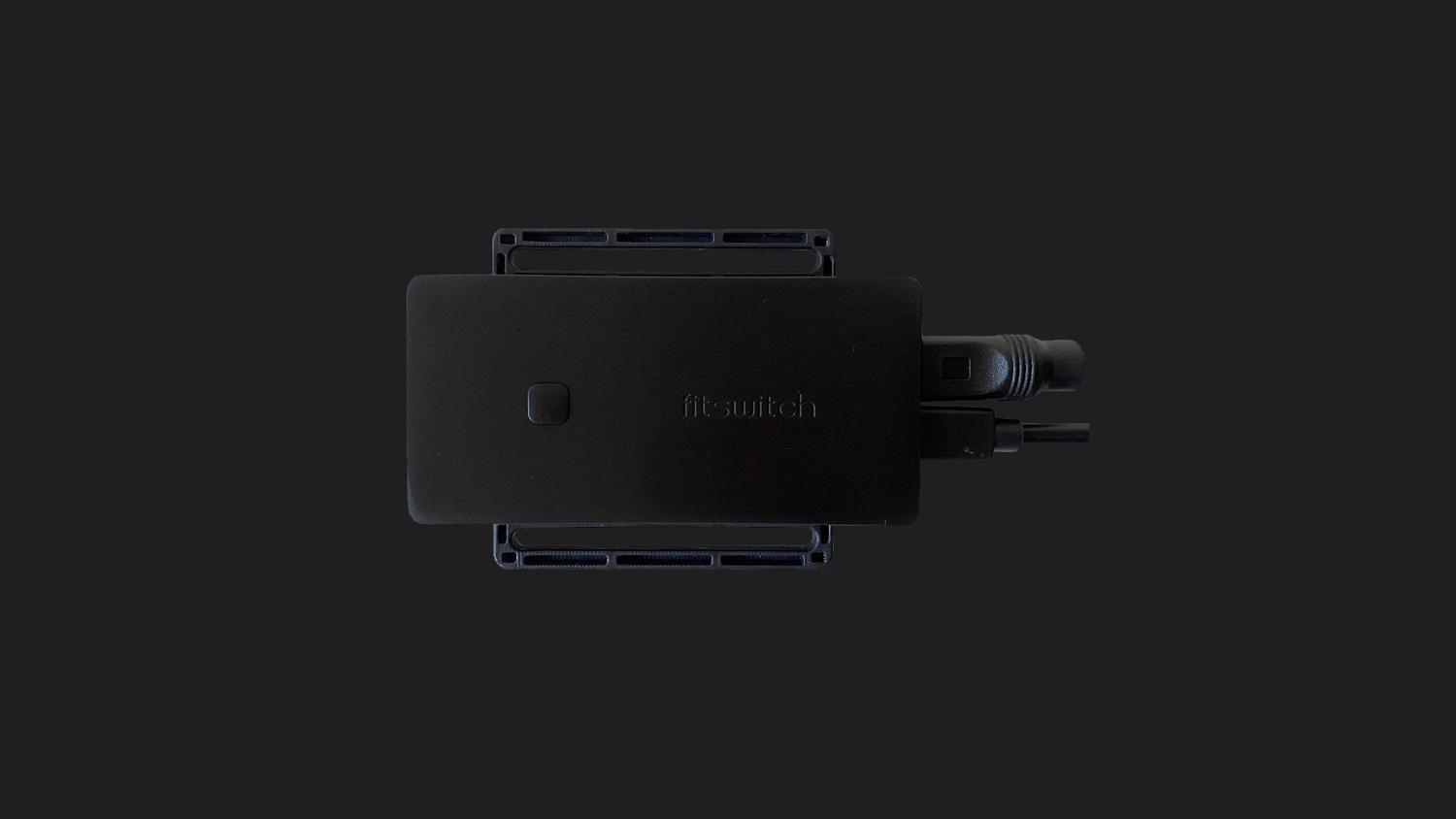

Connect micro usb to fitswitch.
![](http://shop.paradigmiot.com/cdn/shop/files/Data.png?v=1670877859&width=1500)

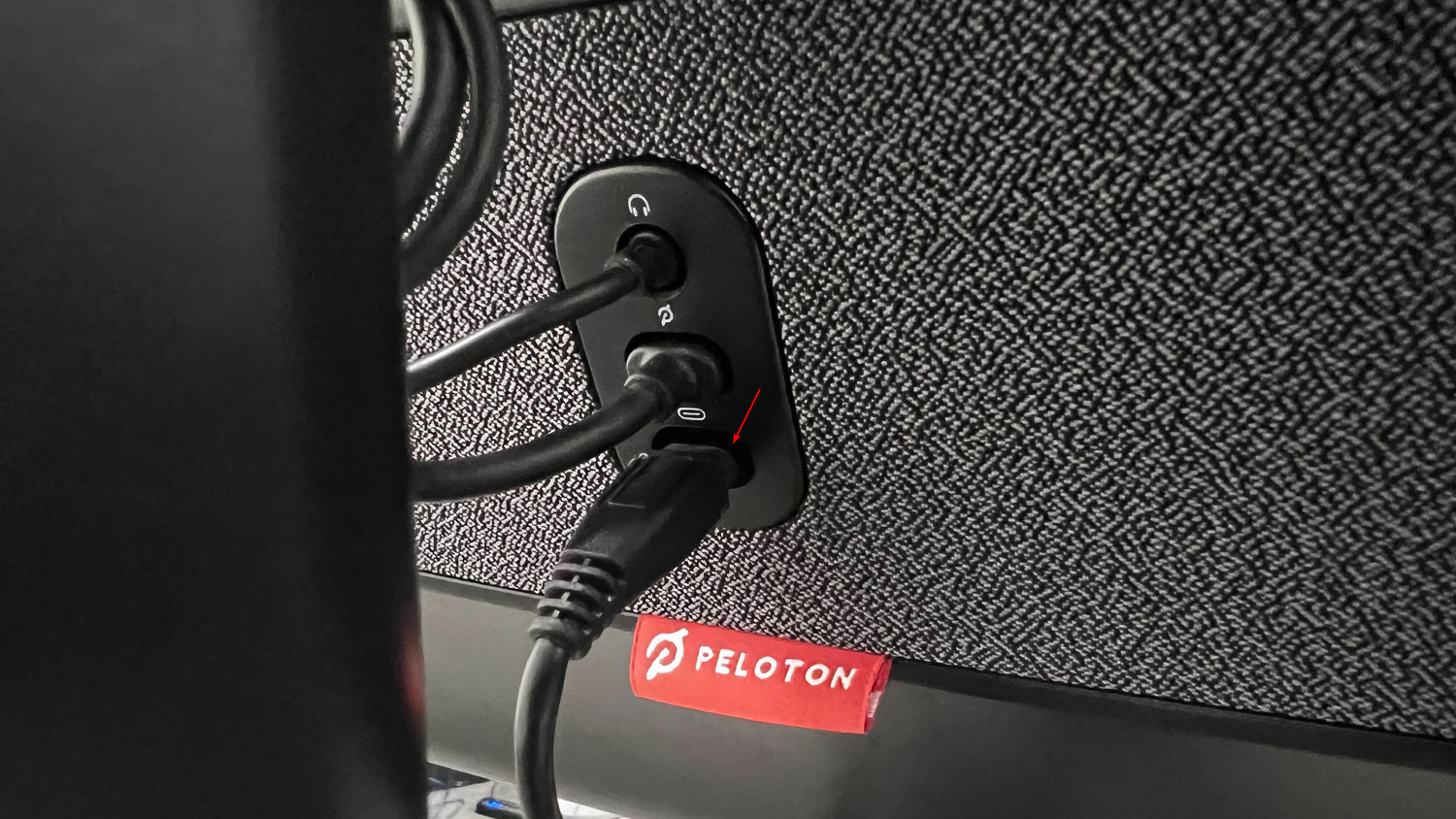

Connect other end of micro usb into Peloton tablet.
![](http://shop.paradigmiot.com/cdn/shop/files/alwaysAllowUSBdebugging.png?v=1655998352&width=1500)

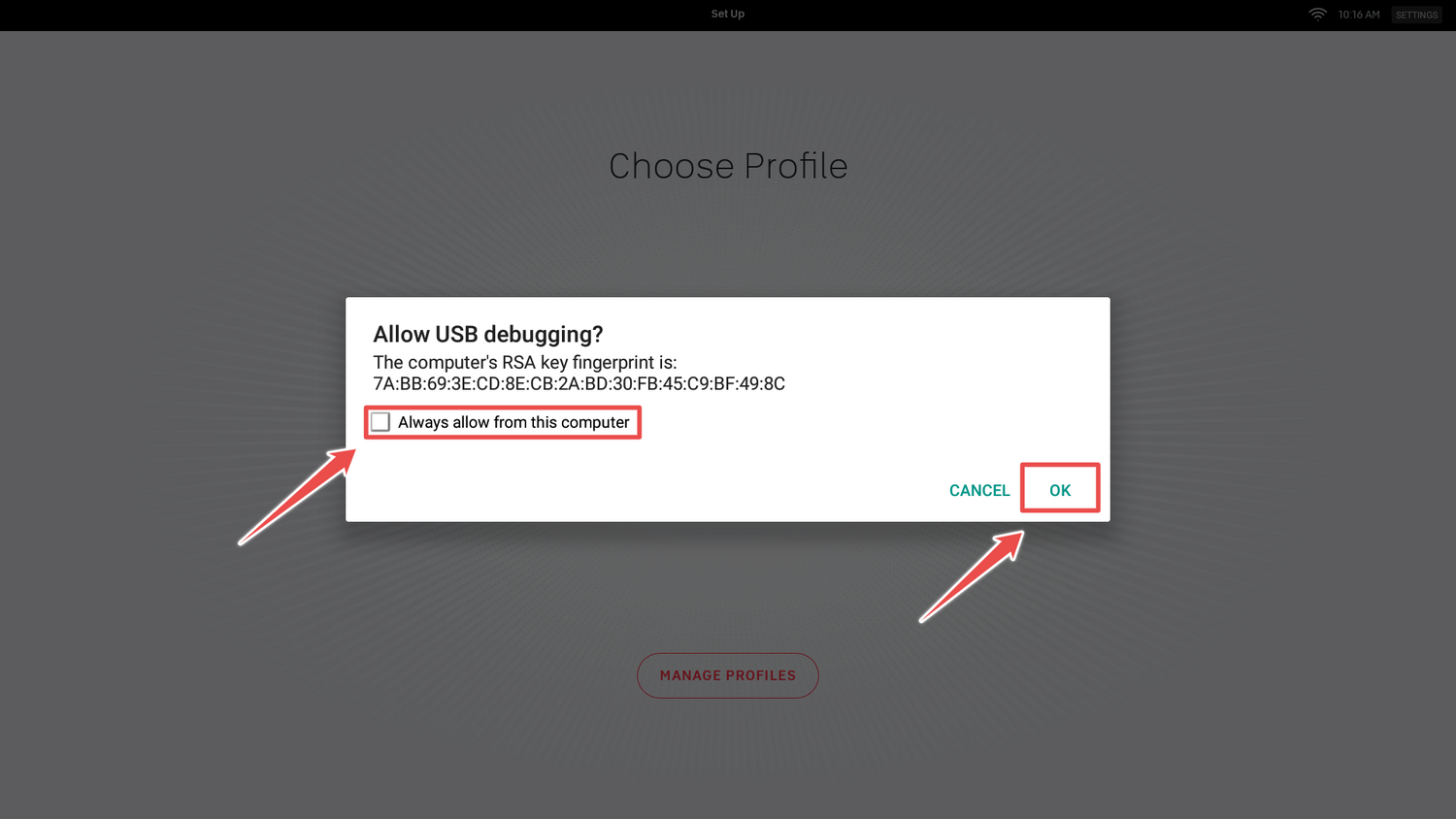

fitswitch light will glow white, once light turns purple, select "Always allow from this computer" and tap ok.
![](http://shop.paradigmiot.com/cdn/shop/files/annotely_image_4c8abc2e-7656-4b1e-a25a-f0ffcf76f78c.png?v=1657121637&width=1500)

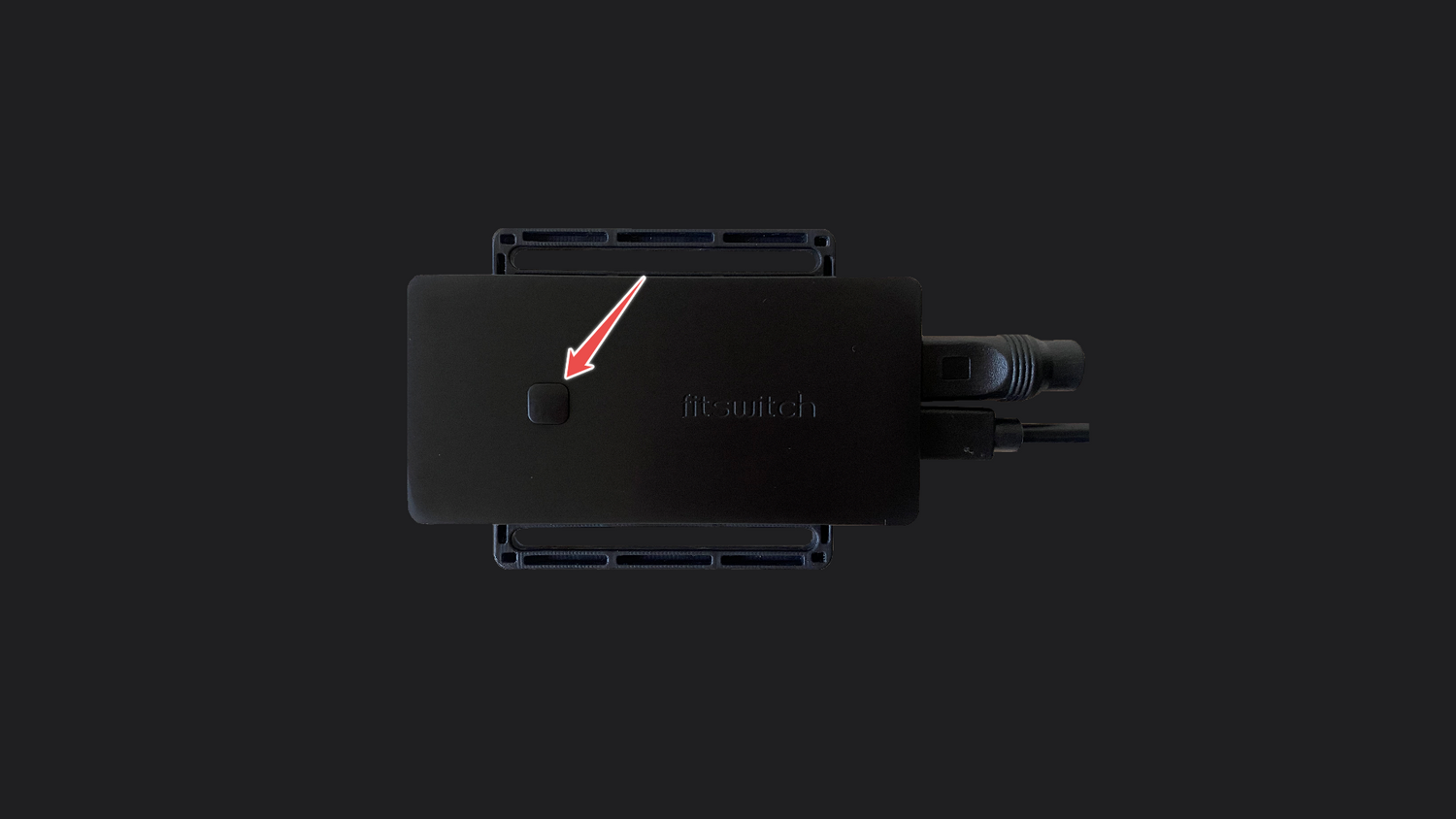

Click button to install fitswitch app on to Peloton. fitwitch light will glow purple while installing and green when complete. fitswitch app will launch automatically.
![](http://shop.paradigmiot.com/cdn/shop/files/startWatching.png?v=1656094054&width=1500)

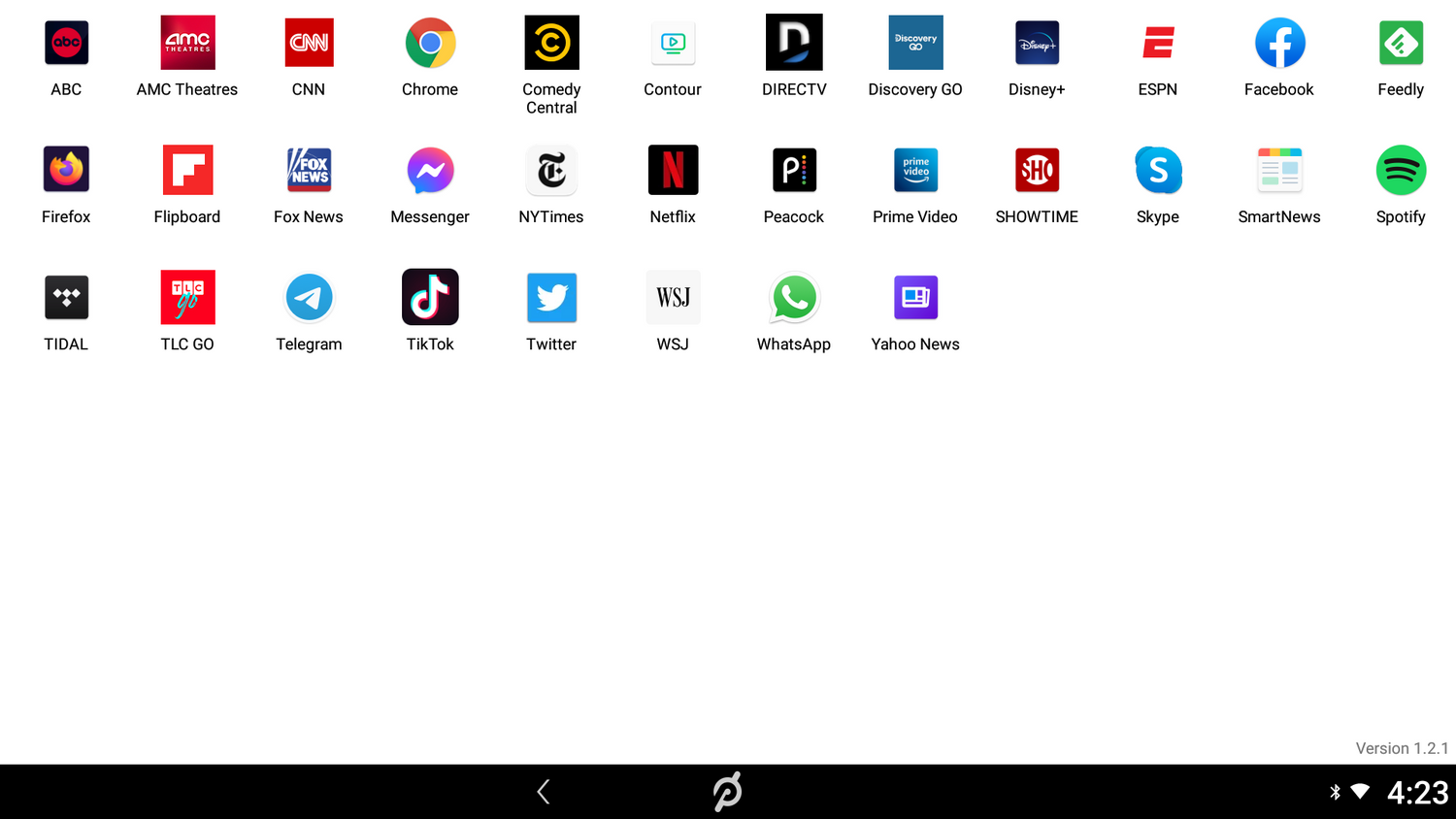

Download apps by clicking on their icon. Now, start watching!
![](http://shop.paradigmiot.com/cdn/shop/files/annotely_image_4_ffcc6ab6-fba7-4f8e-bce2-e9a8d791b953.png?v=1657815140&width=1500)

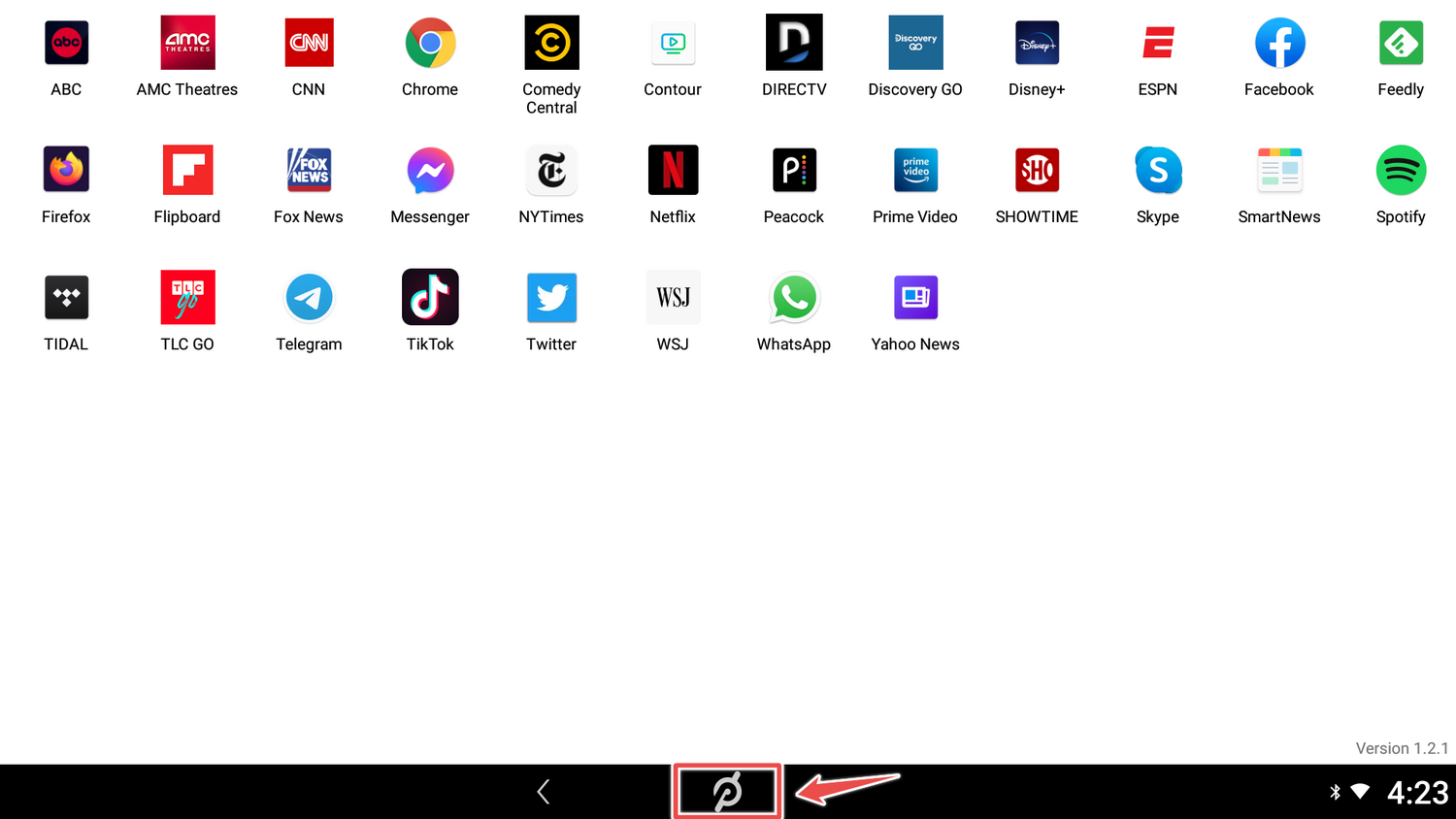

To return to the Peloton app tap the "P" at the bottom of the screen.
